Overview:

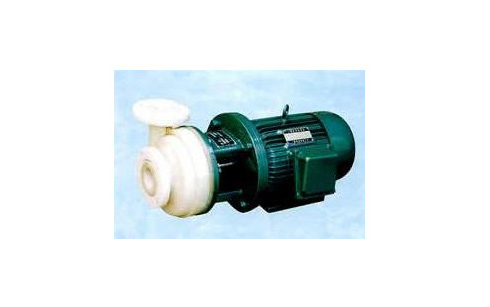

    PF-type chemical pump, the pump cover, impeller and its transmission media contact parts are made of polyvinylidene fluoride or enhanced polypropylene molded or injection mold made​​. Polyvinylidene fluoride plastic with high mechanical strength, good corrosion resistance, is one of the wider application of international engineering plastics.
    PF-type chemical pump to meet the transportation temperature conditions of -50 ℃ ~ 80 ℃ under a variety of concentrations of sulfuric acid, hydrochloric acid, nitric acid, acetic acid, phosphoric acid, chromic acid, oxalic acid, hydrofluoric acid and alkali, organic solvents, oxidizers and other chemical media energy-efficient pumps for chemicals, hydrogen, alkali, fertilizer, dyes, reagents, pesticide, pharmaceutical, electroplating, environmental protection and other industrial sectors conveying corrosive media without particles.

PF type strong corrosion-resistant centrifugal pump performance parameters table:

Model
PF-type inlet diameter
mm outlet diameter
mm speed 2900r/min speed 1450r/min suction on the
Height
Flow
m3 / h Head
m Efficiency
% With motor
KW flow
m3 / h Head
m Efficiency
% With motor
KW
25-20-1202520 2.5 1540 1.1
25-20-12025202 20 43 1.1
32-25-1253225 6.5 2051 1.5
32-25-12532255 25 53 1.5
40-32-1254032 10 15 50 2.2 5 3.75 39 1.1 3
40-32-1254032 7.5 2055 2.2 3.75 540 1.1 3
50-40-1455040 16 28 58 3 8 7 50 1.5 5
50-40-1455040 20 26 61 3 10 6.5 54 1.5 5
50-40-1455040 25 24 63 3 12.5 655 1.5 5
65-50-1606550 15 34 44 5.5 7.5 8.5 50 2.2 5
65-50-1606550 25 36 57 5.5 12.5 860 2.2 5
65-50-1606550 30 30 59 5.5 15 7.5 60 2.2 5
80-65-1608065 30 36 50 7.5 15 9 55 3 5
80-65-1608065 50 32 67 7.5 25 8 68 3 5
80-65-1608065 60 28 65 7.5 30 7.2 68 3 5
100-80-160100 80 60 36 70 11 30 9.2 67 4 5
100-80-160100 80 100 32 78 11 50 8 75 4 5
100-80-160100 80 120 28 75 11 60 6.5 71 4 5
