Product Overview and Features:

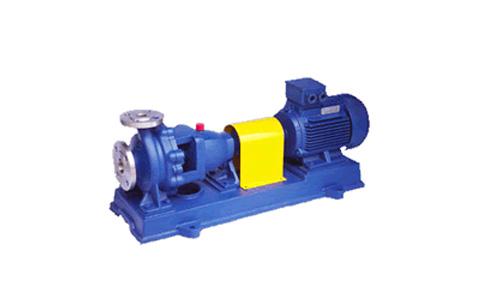

IH type single-stage suction cantilever force chemical centrifugal pump is designed according to state standards according to national standards of ISO2858 SIO199 / DIS manufacturing of its technical indicators compared with the old products, the efficiency of an average of about 5% NPSH reduces the about 2%, a stable performance, the size of parts to achieve the standardization of energy efficient products, energy saving replacement product is the State Administration of Machinery Industry Ministry, the take of old corrosion resistant pumps and import substitution, improved IH-A chemical pump reorganization to a more simple form of the composition of the unit (remove the lengthened coupling pump and motor directly), in particular small power unit to reduce floor space and reduce investment in infrastructure and easy maintenance have its important significance.


Main purposes:

The IH-type pumps are suitable for the industrial sector of the chemical petroleum, petrochemical, metallurgy, light industry, printing and dyeing. Pharmaceutical and environmental desalination. Offshore oil. Paper. Food distribution does not contain solid particles of organic or inorganic chemical medium petroleum products and corrosive liquids.


Working conditions and nature:

(a) conveying water substances and a variety of corrosive media (viscosity similar to water)
(b) density range P = 1.0-1.84 * 10 cubic meters kg / m cubic
c medium temperature range between -20 s, +160 Reading
(d) the system working pressure = <1.6MPa.: system pressure = inlet pressure + pump closing valve when the pressure of = <1.6MPa
(e) the flow rate of 3.4-460m cubic meters / n lift H3.6-132m special circumstances (high temperature high pressure and special materials) made in advance in order to provide a more reliable product.

Material: This type of pump is mainly used to transport corrosive medium, the flow passage components (ie, pump pump cover and impeller) are used the following stainless steel material, the user For selection of other special materials, please order in advance.


Model significance:

Cases: IH-A, 65-50-160AS1-303
IH series pump Code: international standard unit, single-suction chemical pumps
-A of the series pump structure is the first update
65 for the pump suction diameter (mm)
50 for the pump outlet diameter (mm)
160 for the impeller diameter (mm)
A is the impeller through the first cutting
(B, C, the second for the third time)
S1 pump seal forms: mark for soft packing
S1 said single mechanical seal
S2 double mechanical seal
303 for the material code of the flow components


Specific performance parameters:


Type
Pump imports - exports - impeller
(Mm) (mm) (mm)
 Flow
(M3 / h), head
(M) is equipped with a motor efficiency
(%)
Model Power (KW)
50-32-125 12.5 20 Y90L-2 2.2 60
50-32-125 6.3 5 Y801-4 0.55 54
50-32-160 12.5 32 Y100L-2 3 54
50-32-160 6.3 8 Y801-4 0.55 48
50-32-200 12.5 of 50 Y132S1-2 5.5 48
50-32-200 6.3 12.5 Y802-4 0.75 42
50-32-250 12.5 80 Y160M1-2 11 38
50-32-250 6.3 20 Y90S-4 1.5 32
65-50-125 25 20 Y100L-2 3 69
65-50-125 12.5 50 Y901-4 0.55 64
65-50-160 25 32 Y132S1-2 0.5 65
65-50-160 12.5 Y802-4 0.75 60
65-40-200 25 50 Y132S2-2 7.5 60
65-40-200 12.5 12.5 Y90S-4 1.1 55
65-40-250 25 80 Y160M2-2 15 50
65-40-250 12.5 20 Y100L1-4, 2.2 46
80-65-125 50 20 Y132S1-2 5.5 75
80-65-125 25 5 Y802-4 0.75 71
80-65-160 50 32 Y132S2-2 7.5 73
80-65-160 25 8 Y90L-4 1.5 69
8050-200 50 50 Y160M2-2 15 69
80-50-200 25 of 12.5 Y100L1-4 2.2 65
80-50-250 50 80 Y180M-2 22 63
80-50-250 25 20 Y100L2-4 3 60
80-50-315 50 125 Y200L2-2 37 54
80-50-315 25 32 Y132S-4 5.5 52
100-80-125 100 20 Y160M1-2 11 78
100-80-125 50 5 Y90L-4 1.5 75
100-80-160 100 32 Y160M2-2 15 78
100-80-160 50 8 Y100L1-4 2.2 75
100-65-200 100 of 50 Y180M-2 22 76
100-65-200 50 12.5 Y112M-4 4 73
100-65-250 100 80 Y200L2-4 37 72
100-65-250 50 20 Y132S-4 5.5 69
100-65-315 100 125 Y280S-2 75 66
100-65-315 50 32 Y160M-4 11 63
125-100-200 200 50 Y225M-2 45 81
125-100-200 100 12.5 Y132M-4 7.5 76
125-100-250 200 80 Y280S-2 75 78
125-100-250 100 20 Y160M-4 11 76
125-100-315 100 32 Y160L-4 15 73
125-100-400 100 50 Y200L-4 30 65
150-125-250 200 20 Y180M-4 18.5 81
150-125-315 200 32 Y200L-4 30 79
200-150-250 400 20 Y225S-4 37 79
200-150-315 400 32 Y225M-4 45 79
200-150-400 400 50 Y280S-4 75 77
