Overview

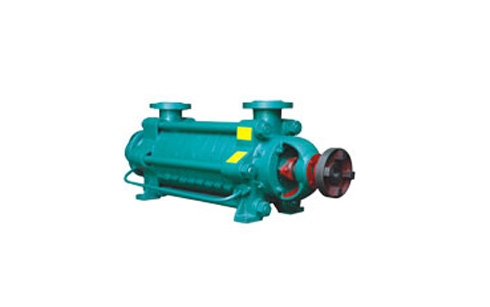

      Department section of this series of pumps multistage centrifugal pumps, the use of the national recommended energy efficient hydraulic model, with high efficiency, wide range of performance, safe and stable running, low noise, long life, easy installation and maintenance, etc.; by changing the pump material part of the material (or pump flow), seal the form and increase the cooling system can deliver hot water, oil, corrosive and abrasive-containing medium.
      D-type pump for conveying solid particles at a temperature not higher than 80 ° C water or physical and chemical properties similar to water in liquid, to adapt to the drainage works in the mines and cities.
      DG pump for non-delivery of solid particles at a temperature not higher than 105 ° C water or physical and chemical properties similar to water in liquid, for boiler feed water or the conveyance of hot water or hot water-like media.
      MD pump for conveying solid particles content is not greater than 1.5% of the neutral mineral water (particle size of less than 0.5 mm) and other similar sewage, the transmission medium temperature is not higher than 80 ° C, suitable for steel mills, mine drainage occasions, sewage conveyance.
      DF type pump is used to transport temperature -20 ℃ ~ 105 ℃, solid particles, and corrosive liquids.
      Type DY pump used to deliver without solid particles, the temperature is -20 ℃ ~ 150 ℃, the viscosity is less than 120 centistokes oil and petroleum products.
      Above the pump inlet pressure of no more than 0.6MPa.

Model significance
      D (DG, MD, DF, DY) 85-67 × 3
      D - multi-stage horizontal centrifugal pump
      DG - multi-stage boiler feed pump
      MD - wear multi-stage centrifugal pumps
      DF - multi-stage corrosion resistant centrifugal pump
      DY - multi-stage centrifugal pump
      85 - pump design point flow rate of 85m ³ / h
      67 - single-stage pump design point head for 67m
      3 - pump series
      100D16 × 3
      100 - pump inlet diameter is 100mm
      D - multi-stage horizontal centrifugal pump
      16 - single-stage pump design point head is 16m
      3 - pump series

Range of performance (design point)
      Flow rate: 6.3 ~ 600m ³ / h
      Head: 22.8 ~ 650m
