Product Overview:

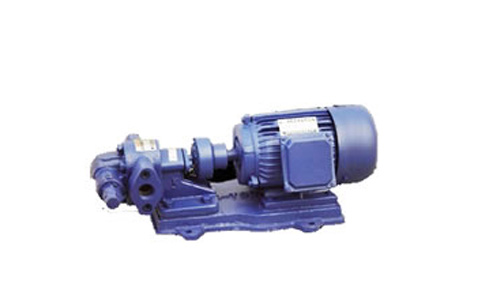

KCB gear pump is suitable for conveying a variety of oils, such as crude oil, diesel oil, lubricating oil. With low flash point liquid such as gasoline, benzene, etc., with copper gear can deliver. Medium temperature is not more than 70 ° C, for the use of high-temperature pump can be equipped with high temperature materials in contact with the unit. The use of high-temperature pump temperature does not exceed 300 ° C, the viscosity of 5 × 10-5 ~ 1.5 × 10-3m2 / s. The 2cy gear lubrication pump is mainly used for the lubrication system in a variety of machinery and equipment, transmission lubricants, lubrication oil for transportation viscosity 10.E (75c.st) below, the temperature below 300 ℃, stainless steel The gear pump can transport the edible oil, soft drinks, and so on. This series pump is simple and compact structure, convenient use and maintenance.

Model significance:

Use:
Without solid particles and fibers, non-corrosive lubricants, heavy oil, industrial light oil and edible oil can be conveying. Applies to oil depots, docks, ships, factories, farms, mines and other.


Model
 Caliber flow
(L / min) and discharge pressure
(MPa) suction lift
(M) Motor Power
(KW)
KCB,-18.3
2CY-1.1/14.5-2 3/4 18.3 14.5 5 1.5
KCB,-33.3
2CY-2/14.5-2 3/4 33.3 14.5 5 2.2
KCB-55
2CY-3.3/3.3-2 1 55 0.33 5 1.5
KCB,-83.5
2CY-5/3.5-2 1 55 0.33 5 2.2
KCB,-83.3
2CY-5/5-2 11/2 83.3 0.33 5 2.2
KCB,-200
2CY-8/3.3-2 11/2 "83.3 0.33 5 3
KCB,-200
2CY-12/1.3-22 2 "200 0.33 5 4
KCB,-200
2CY-12/3.3-2 2 "200 0.33 5 4
KCB,-200
2CY-12/6-2 2 "200 0.33 5 5.5
KCB,-200
2CY-18/10-2 2 "200 0.33 5 5.5
KCB,-200
2CY-18/3.6-2 21/2 "200 0.33 5 7.5
KCB,-300
2CY-18/3.6-2 3 "300 0.33 5 5.5
KCB,-300
2CY-18/6-2 3 "300 0.33 5 7.5
KCB83.3
2CY-29/3.6-2 3 483.3 0.33 5 7.5
KCB83.3
2CY-29/3.6-2 3 483.3 0.33 5 11
KCB,-633-2
2CY-38/2.8-2 4 "633 0.28 5 11
KCB,-633-2
2CY-38/8-2 4 "633 0.28 5 22
KCB-960-2
2CY-60/3-2 4 960 0.3 5 18.5
KCB-960-2
2CY-60/6-2 4 960 0.3 5 30
