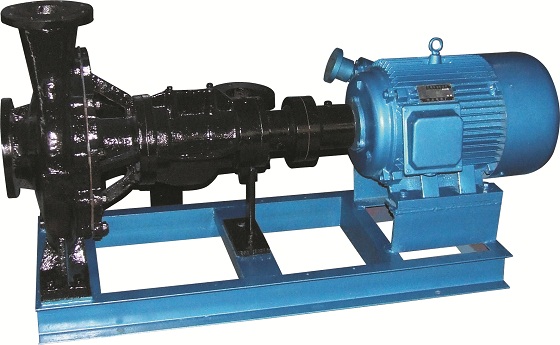

High-temperature heat conduction oil energy saving pump
High-temperature heat conduction oil energy saving pump
Conducting oil high temperature energy-saving pump is my factory digestion and absorption of foreign oil pump on the basis of research and development of second-generation product, the basic structure for the import of single-stage single-suction cantilever foot support structure, pump suction, vertical up of export-centric,and the motor with the installed base.







Conducting oil high temperature energy-saving pump support using the structure of thedouble-end ball bearings support the front-end lubricating oil, the back-end with greaselubrication, the middle of a guide tubing, to always observe the seals and the recovery ofheat-conducting oil.
Natural radiation structure has changed the traditional structure of water cooling, simple structure, small size, to save operating costs, performance, and reliable use.

Model                       Flow m3/h  Head m Speed r/min  Power kw

HRW50-200 12.5 50 2900 5.5
HRW50-250 12.5 80 2900 11
HRW50-160I 25 32 2900 2.2
HRW50-200I 25 50 2900 7.5
HRW50-250I 25 80 2900 15
HRW65-160 25 32 2900 4
HRW65-200 25 50 2900 7.5
HRW65-250 25 80 2900 15
HRW65-160I 50 32 2900 7.5
HRW65-200I 50 50 2900 15
HRW65-250I 50 80 2900 22
HRW80-160 50 32 2900 7.5
HRW80-200 50 50 2900 15
HRW80-250 50 80 2900 22
HRW80-160I 100 32 2900 15
HRW80-200I 100 50 2900 22
HRW80-250I 100 80 2900 37
HRW100-160 100 32 2900 15
HRW100-200 100 50 2900 22
HRW100-250 100 80 2900 37
HRW100-160I 160 32 2900 22
HRW100-200I 160 50 2900 37
HRW100-250I 160 80 2900 55
HRW100-315I 100 32 1450 15
HRW100-400I 100 50 1450 30
HRW125-315 80 32 1450 30
HRW125-400 100 50 1450 30
HRW125-315I 160 32 1450 22
HRW125-315IA 150 28 1450 18.5
HRW125-400I 160 50 1450 37
HRW150-315 160 32 1450 22
HRW150-400 160 50 1450 37
HRW150-315I 200 32 1450 30
HRW150-400I 200 50 1450 45
HRW200-315I 200 32 1450 30
HRW200-400 200 50 1450 45
HRW200-500 200 80 1450 90
HRW200-315I 400 32 1450 55
HRW200-400I 400 50 1450 90
HRW250-315 550 32 1450 75
HRW250-400 550 50 1450 110
HRW250-400A 515 44 1450 90
HRW300-315 720 32 1450 90
HRW300-400 720 50 1450 132
HRW300-460 1210 50 1450 250
HRW300-380A 666 38 1450 110
HRW350-315 800 32 1450 90
HRW350-400 800 50 1450 160
HRW500-625 1200 32 1450 160
