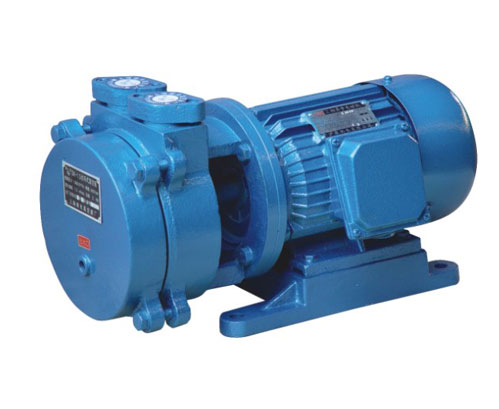

SZB-type vacuum pump
SZB-type vacuum pump

SZB-type vacuum pump the Cantilever water ring vacuum pump, available for pumpingair or other non-corrosive, insoluble in water, does not contain solid particles gas.Minimum suction pressure-0.086MPa in the machinery, petroleum, chemical, pharmaceutical, food industry and other fields.
SZB-type vacuum pump the Cantilever water ring vacuum pump, available for pumpingair or other non-corrosive, insoluble in water, does not contain solid particles gas.Minimum suction pressure-0.086MPa in the machinery, petroleum, chemical, pharmaceutical, food industry and other fields. Particularly suitable for use to do a largewater pump diversion.

The SZB type vacuum pump performance parameters:

Model
Amount of exhaust   m3/min
Ultimate vacuum  MPa
Motor Power  KW
Speed  rpm
Inhalation caliber mm
Discharge diameter  mm
Water supply quantityL/mm
heavy Kg
The largest gas
The suction pressure-0.07MPa
SZB-4
0.4
0.254L/S
-0.08
1.5
1450
G1"
G1"
8
95
SZB-8
0.8
0.488L/S
-0.08
2.2
1450
G1"
G1"
10
105

Note:
A vacuum degree of from 40% to 90% or pressure from 0.05MPa to 0.15MPa suctiondisplacement as the size of the water supply, the gap size of the impeller and the side cover change, the gap size change of the impeller and the side cover, especially flow is low, if adjustments are not accurate and more likely to cause small
2, Table values ​​are obtained under the following conditions: ① water temperature 15 ° C;② The Air 20 ° C; ③ gas relative temperature 70%; ④ atmospheric pressure0.1013MPa
3, Table performance deviation does not exceed 5%
